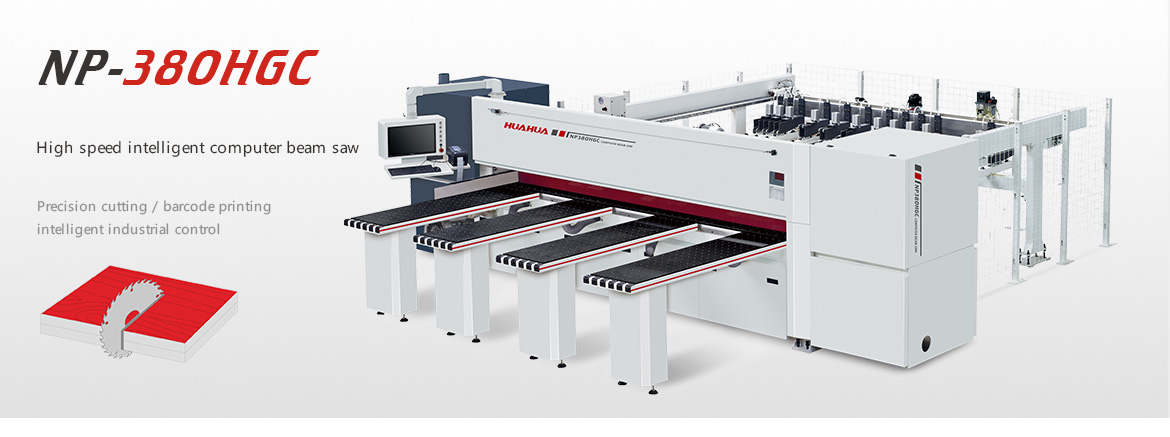

High speed intelligent computer beam saw NP-380HGC
產品詳情


High speed intelligent computer beam saw

380HGC 大圖(en).jpg



· Aroduct feature

Saw  speed can be adjusted from 0-100m/min Maximum cutting thickness up to 120mm

The counterboard adopts 28mm plate, front and rear counterboard frame combination, saw carrier is unilateral suspension structure, independentmain saw and scoring saw body linear stability, automatic induction saw carrier forward speed,

high precision fast and smooth processing saw cutting.

The industrial control PC and design software are optional, intergation with optimizer software prefectly.

The human-machine interface is simple and friendly, the operation is convenient and reliable.


· Technical  parameters

Model
NP-380HGC
Model
NP-380HGC
Max.cutting length
3780MM
Saw carriage drive motor
1.5kw(AC伺服)
Max.cutting thickness
120mm
Automatic feeding motor
1.5kw(AC伺服)
Main saw blade diameter
φ380/450mm
High-pressure blower motor
3/4kw
Main saw shaft diameter
φ75mm
Total power
28.2kw
Main saw shaft rotation speed
3900rpm
Automatic feeding speed
80m/min
Scoring saw blade diameter
φ180mm
Air pressure
5-7kg/cm2
Scoring saw shaft diameter
φ45mm
Worktable height
960mm
Scoring saw shaft rotation speed
6900rpm
Net weight
6500kg
Saw carriage forward speed
120m/min
Machine size(l*w*h)
6400*7300*2100mm
Saw carriage backward speed
150m/min
Packing size(l*w*h)
5700*1750*2100mm
Main saw motor
18.5kw
Feeding frame(l*w*h)
4500*600*2100mm
Scoring saw motor
1.5kw



· Detail display

Air floating tablePneumatic clampingPrecision oil injection systemSide aligning motor
label printerSide aligning deviceRoller conveyorHigh precision automatic feeding


· Process analtical



1.Optimization cutting plan

intergation with cutting list, reasonable automatic optimization cutting plan



2.Manual feeding

Move the board from lifting table to feeding gripper for position



3.Clamping and feeding

Feeding gripper pulls the board into the specified position in the machine


4.Automatic side aligning

Side wheels position the board from the side tightly



5.Automatic press panel

Press beam automatic press panel flatly


6.Dustproof plate

Prevent offcut and dust splashing outwards


7.Precision cutting

Efficient and high speed cutting


8.Automatic output

Cut according to the size set by the program and send out automatically
